Cylinder surface area is the total area covering the outside of a cylindrical shape, including the curved side and its circular ends. From water tanks to soda cans, this concept shows up more often than people think—especially when measurements follow SI units like meters and centimeters—and a Surface Area Of A Cylinder Calculator makes it easy to get accurate results without doing the math by hand.
A cylinder is a three-dimensional (3D) solid that’s easy to recognize once you know its parts. It has a clean, symmetrical form and shows up everywhere, from kitchen containers to industrial tanks.
.jpg)
A standard cylinder is made up of:
Two equal circular bases – one on the top and one on the bottom
One curved lateral surface that wraps around the sides
If you imagine slicing the cylinder vertically and laying the side flat, that curved surface becomes a rectangle. One side of that rectangle equals the circle’s circumference, written as 2π × r, and the other side equals the height h.
When people talk about surface area of a cylinder, they’re talking about the entire outer skin of this shape — all the parts you could touch if you held it in your hands.
Below are the standard surface area of a cylinder formulas written using SI units. Radius r and height h must be measured in the same unit (cm, m, mm) to keep results accurate and consistent.
.jpg)
The curved surface is the part that wraps all the way around the cylinder, without including the top or bottom circles. If you unwrap it, this surface forms a rectangle.
Formula: 2π × r × h
Here’s how it fits together:
2π × r represents the circumference of the circular base
h is the height of the cylinder
Multiplying them gives the area of the curved side only
The result is expressed in square units, such as cm² or m².
Total surface area includes everything on the outside: the curved surface plus both circular ends.
Formula: 2π × r² + 2π × r × h
What each part means:
2π × r² accounts for the two circular bases
2π × r × h accounts for the curved surface
When added together, this formula gives the complete outer area of a closed cylinder.
If you have radius r and height h, you can calculate curved surface area or total surface area in a few clean steps. The key is keeping units consistent (all cm, or all m) so your final answer is in the right square unit.
Step 1: Identify What You’re Solving For
Before calculating, decide which surface area you need:
Curved surface area (CSA) → only the wrap-around side
Formula: 2π × r × h
Total surface area (TSA) → wrap-around side + top + bottom
Formula: 2π × r² + 2π × r × h
If the question says “outside area of a closed cylinder,” it usually means total surface area.
Step 2: Confirm Radius vs Diameter
A lot of problems give diameter instead of radius.
If you’re given diameter d, convert it first: r = d ÷ 2
This matters because every cylinder surface area formula uses radius r, not diameter.
Step 3: Calculate the Curved Surface Area Part
Start with the side surface (this part is included in both CSA and TSA):
2π × r × h
You can think of it like this:
2π × r gives the circumference of the base circle
Multiplying by h gives the “unwrapped rectangle” area
Step 4: Add the Two Circular Bases (Only for Total Surface Area)
If you want total surface area, you add the two circle ends:
One base area: π × r²
Two bases: 2π × r²
So TSA becomes:
2π × r² + 2π × r × h
Step 5: Keep Units and Rounding Clean
If r and h are in cm, your result is in cm²
If r and h are in m, your result is in m²
For rounding:
Keep 2–3 decimal places for homework or quick estimates
Use more precision if you’re comparing two close results
Once you enter your values and click Calculate, the Surface Area Of A Cylinder Calculator returns a clear “Results” block that breaks the cylinder into the main surface parts. Instead of showing only one final number, it lists each surface area separately, along with the matching formula—so users can quickly understand what each value represents and double-check the math if they want.
For the example shown (with radius r = 3 m and height h = 5 m), the calculator outputs:
Top Surface Area
Output: 28.2743 meter²
This is the area of the top circular face.
Bottom Surface Area
Output: 28.2743 meter²
This is the area of the bottom circular face (same as the top because the radius is the same).
Lateral Surface Area (curved surface)
Output: 94.2478 meter²
This is the “wrap-around” area of the cylinder—the part you’d cover if you peeled the side off and laid it flat.
Total Surface Area (full outside area)
Output: 150.7964 meter²
This final value combines top + bottom + lateral, so it’s the total area covering the entire outside of a closed cylinder.
The best part is that the calculator automatically formats the answers in square units (like meter²) based on the unit you selected for radius and height, and keeps the results neatly separated so users can grab exactly the number they need—whether they’re calculating just the curved side or the full surface area.
Below are two real-number examples using SI units. I’ll show each step clearly so you can follow the same flow with your own radius r and height h.
Let’s say a soda can has:
Radius: r = 3.5 cm
Height: h = 12 cm
Formula: 2π × r × h
2π × 3.5 × 123.5 × 12 = 422π × 42 = 84π84 × 3.1416 ≈ 263.89Curved Surface Area ≈ 263.89 cm²
Formula: 2π × r² + 2π × r × h
r² = 3.5² = 12.252π × 12.25 = 24.5π2π × 3.5 × 12 = 84π24.5π + 84π = 108.5π108.5 × 3.1416 ≈ 340.86Total Surface Area ≈ 340.86 cm²
Quick picture: This is close to the outside area you’d cover if you wrapped a small label around a typical can and included both ends.
Now a larger cylinder, like a small vertical water tank:
Radius r = 1.2 m
Height h = 3 m
Formula: 2π × r × h
2π × 1.2 × 31.2 × 3 = 3.62π × 3.6 = 7.2π7.2 × 3.1416 ≈ 22.62Curved Surface Area ≈ 22.62 m²
Formula: 2π × r² + 2π × r × h
r² = 1.2² = 1.442π × 1.44 = 2.88π2π × 1.2 × 3 = 7.2π2.88π + 7.2π = 10.08π10.08 × 3.1416 ≈ 31.67Total Surface Area ≈ 31.67 m²

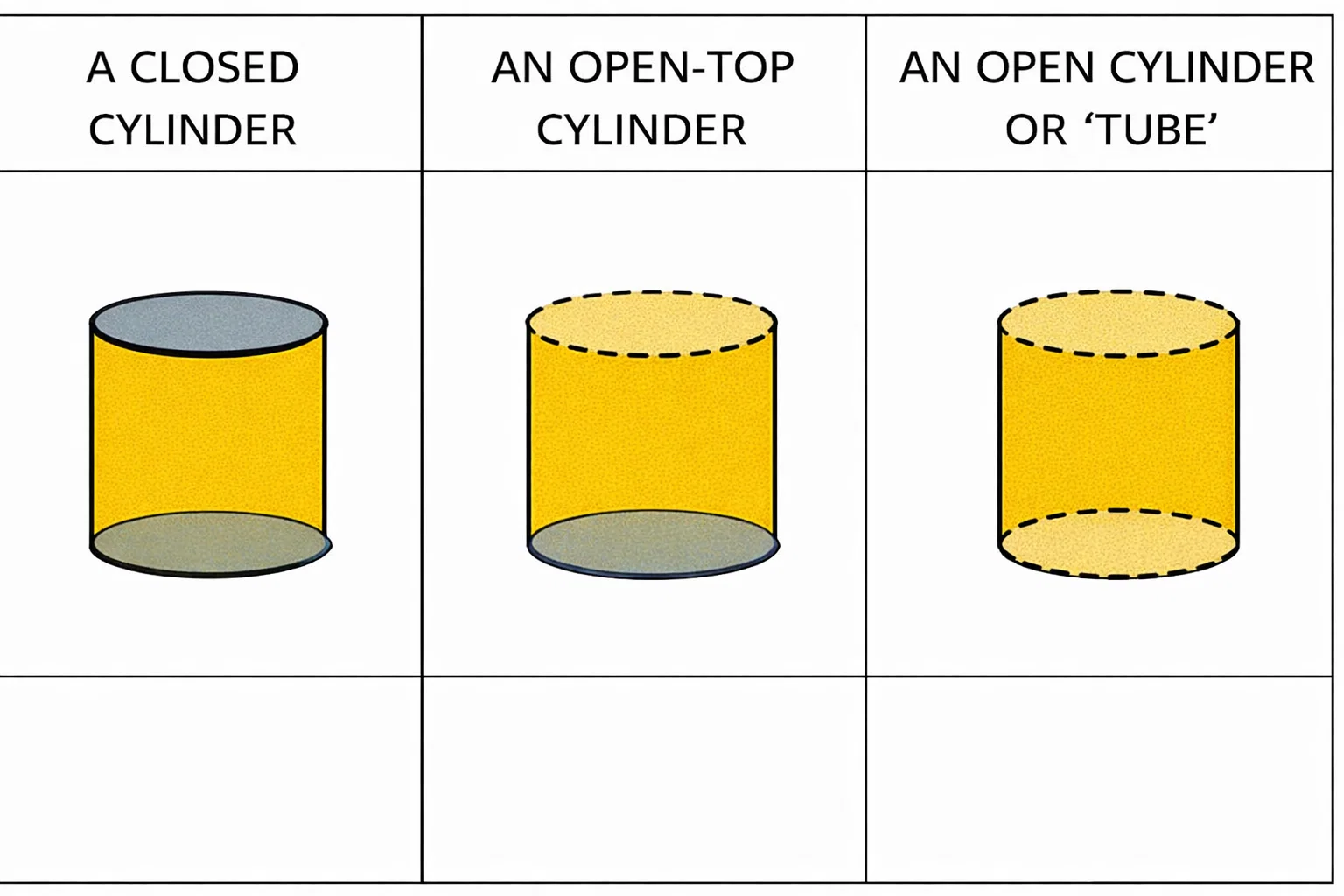

Not every cylinder is a “closed can” with two circular ends. In real questions, you’ll often see cylinders that are open, missing one base, or even cut in half. The formulas below stay simple — you’re mostly just adding or removing surfaces.
An open cylinder is basically only the curved wrap-around surface.
So you don’t include any circular base area.
Surface area (open cylinder): 2π × r × h

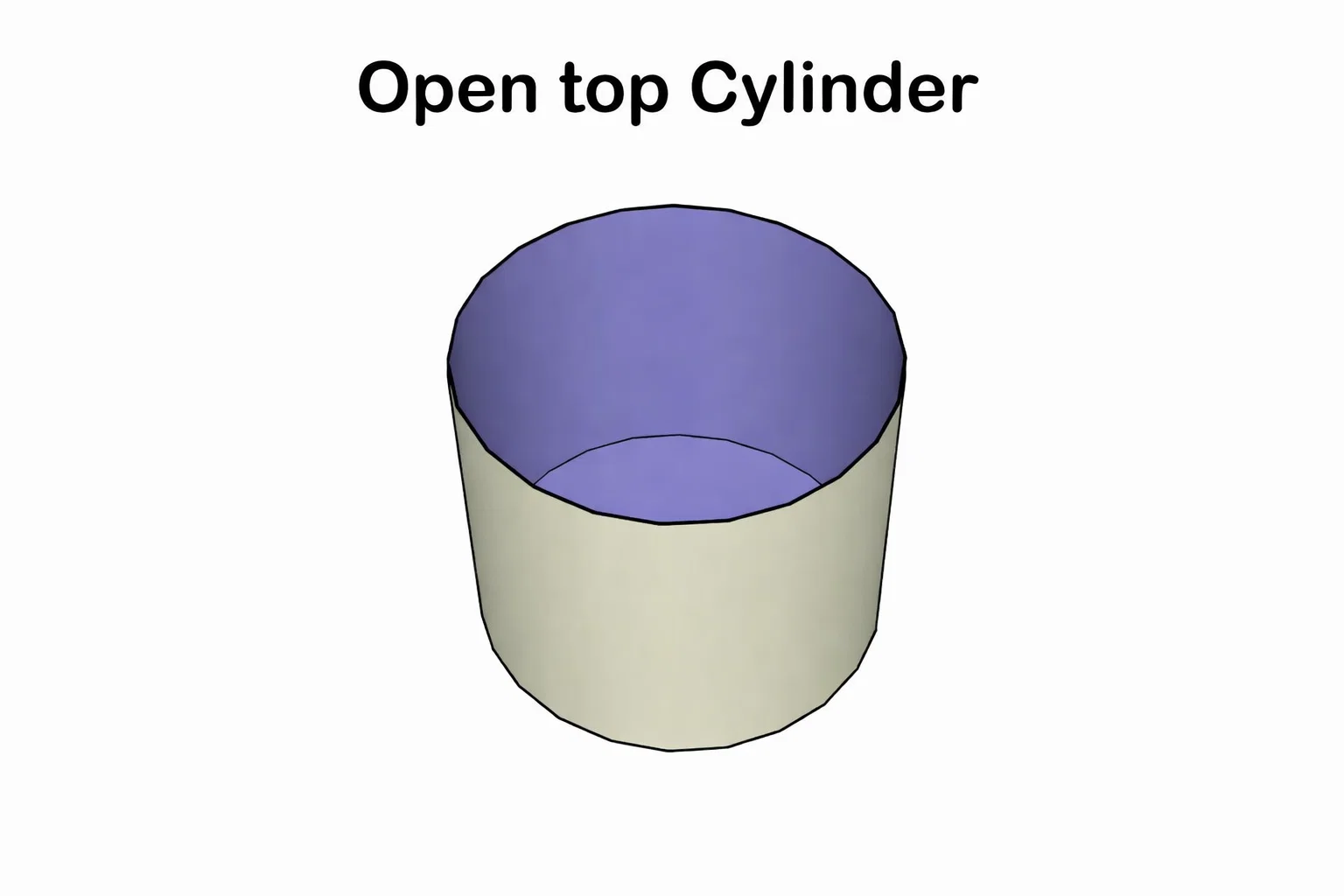

Sometimes a cylinder has only one circular base (like a cup shape, or a container without a lid).
That means you add one base, not two.
.jpg)
Surface area (one base): π × r² + 2π × r × h
This is just:
one circle area π × r²
plus curved surface 2π × r × h
A half cylinder usually means the cylinder is sliced along its height, creating:
one curved half surface
a flat rectangular cut face
and two half-circle ends (which together equal one full circle)
Let’s break it cleanly:
Half of curved surface
Full curved surface is 2π × r × h
Half becomes: π × r × h
The cut rectangle face
Width becomes the diameter 2r
Height is h
Rectangle area: 2r × h
The two half-circle ends = one full circle
Area: π × r²
So the total surface area of a half cylinder (including the cut face) is:
Half cylinder surface area: π × r² + π × r × h + 2r × h
Note: Some problems say “half cylinder” but don’t want the cut face included (depends on the context). If the question says “paint only the curved part,” you’d use just π × r × h
surface area of a cylinder formulas use the radius r. If a problem gives the diameter, convert it first using r = d ÷ 2 before applying any formula.
Yes. Total surface area always includes the curved surface plus both circular bases. If the cylinder is open or missing a base, the formula needs to be adjusted.
Curved surface area counts only the side surface of the cylinder, using 2π × r × h.
Total surface area adds the top and bottom circles, using 2π × r² + 2π × r × h.
Surface area is expressed in square units, such as cm², m², or mm². The unit depends on the unit used for radius and height.
For general use, rounding to 2 or 3 decimal places is usually enough. More precision may be needed if the result is part of a longer calculation.
No. A hollow cylinder has inner and outer curved surfaces, so both must be included. The standard formulas apply only to solid cylinders.
